ACF44

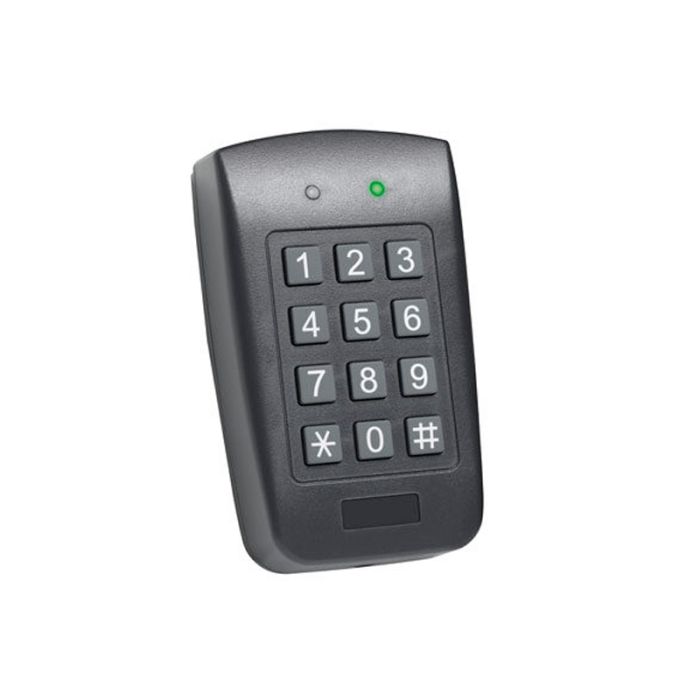

Rosslare Standalone 3x4 Keypad & EM Prox

For greater peace of mind, this sturdy access control unit provides three levels of security that can be assigned to as many as 500 users. The AC-F44 offers automatic mode recognition and a user-friendly setup menu, simplifying configuration and use. Extra features such as various door alarms, LED control, and tamper detection provide extra security and flexibility. Come rain or shine, this reader can handle the challenge, with its rugged UV-resistant housing and water-resistant enclosure for maximum durability. The backlit keypad is clearly visible day or night, making these units ideal for residential, commercial and industrial applications.

• Up to 500 users can be coded using Smart enroll and delete technology
• Mounting template and installation kit are provided

Three user levels:

• Normal – Requires single PIN code or PROX card  Secure – Requires both PIN and PROX card  Master User
• Three access levels: Normal Bypass Secure
• Suitable for Gang Box installations
• Programmable PIN code length of 4-digits to 8- digits
• Powered either by transformer (AC) or regulated power supply (DC) ]
• Water-resistant and UV-resistant, meets IP65
• Internal buzzer
• Two inputs: REX and Auxiliary
• Two Form C, 2 Amp outputs: Lock Strike and Auxiliary
• Two tri-colored status/programming LEDs
• Ten auxiliary modes including: Door Ajar, Forced Door, Alarm Shunt, and Door Monitor
• Built-in optical back tamper detection
