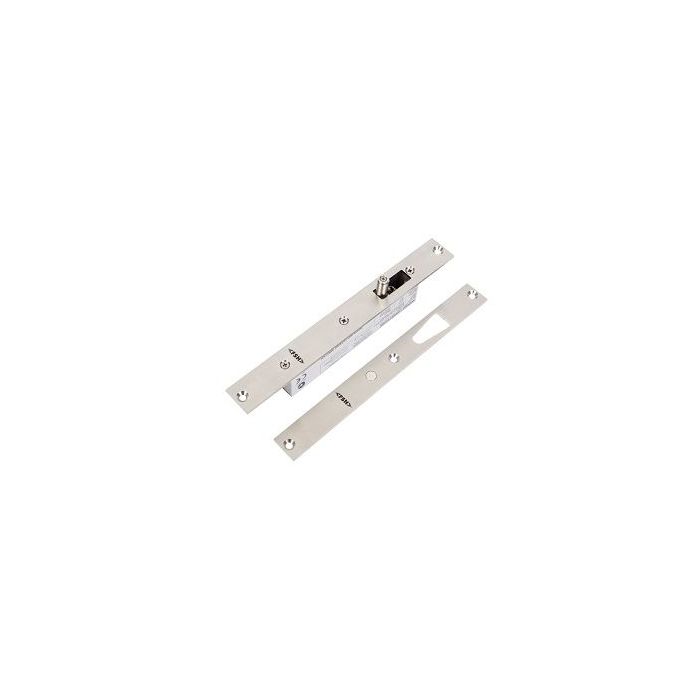

VE1260S
FSH Vlock- Square Ends Must be connected as 3-wire
The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/ side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180° degree swing through doors. The VE1260 is considered a “Green Product” as it consumes an inrush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA@12VDC.
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
|
Brochure | VE1260 Series Brochure | 325.3 KB | Download | |
|
|
Manual | VE1260 Series Manual | 788.2 KB | Download |
- Releases with up to 35kg of Pre-Load/Side Load
- Motorised locking device.
- Sleep-Mode Current less than 15mA@12VDC
- Up to 1000kg Holding Strength
The VE1260 is considered a Green Product as
it consumes an inrush current of 290mA @ 12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current
less than15mA @ 12VDC.
A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.
An optional LED red/green indicator unit
is available.810
