101-281
SKU
101-281

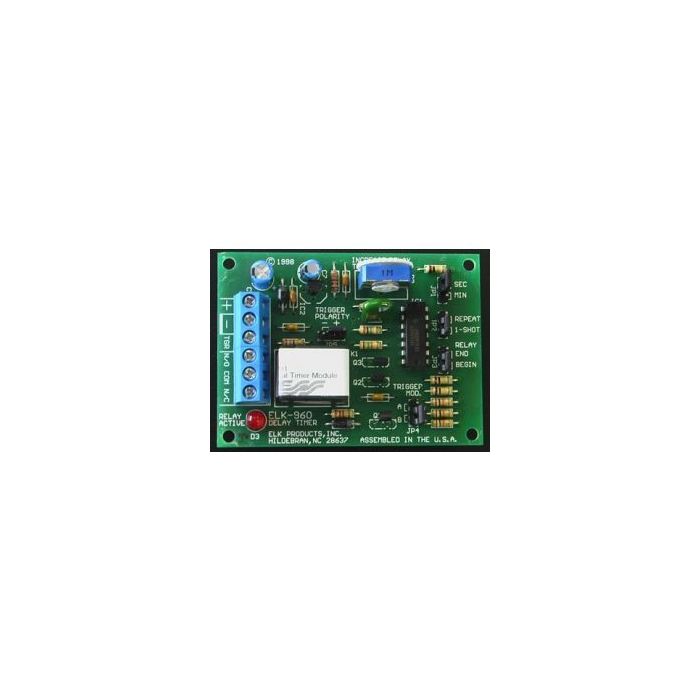

ELK Universal Timer Module
FEATURES:
• Operating Voltage Range: 12 to 24 Volts D.C.
• AdjustableDelayTime.
• PositiveorNegativeLowCurrentTrigger.
• SPDT (Form "C") Relay.
• Selectable Initial Relay State: ON / OFF.
• Output Modes: One-Shot or Repeat.
• LED Indication of Relay Status.
• Lifetime LimitedWarranty, call for details.
• Packed In Reusable Poly Storage Box.
SPECIFICATIONS:
• Time Settings: 1 Sec to ~ 60 Min.
• Relay Contact Rating: 7A @ 30 VDC.
10A @ 125 VAC.
• Operating Voltage: 12 to 24 Volts D.C.
• Trigger Voltage: 4.5 - 24 Volts D.C.
• Input Trigger Current: 1.2 mA.
• Current Draw With Relay On: 40mA.
• Size: 76x55x25mm (Fits Std.Snap Track).
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Manual | ELK 101-281 Manual | 578.7 KB |
- Operating Voltage Range: 12 to 24 Volts D.C.
- AdjustableDelayTime.
- Selectable Initial Relay State: ON / OFF
- OutputModes:One-Shot orRepeat.
