SPRL1911
SKU
SPRL1911

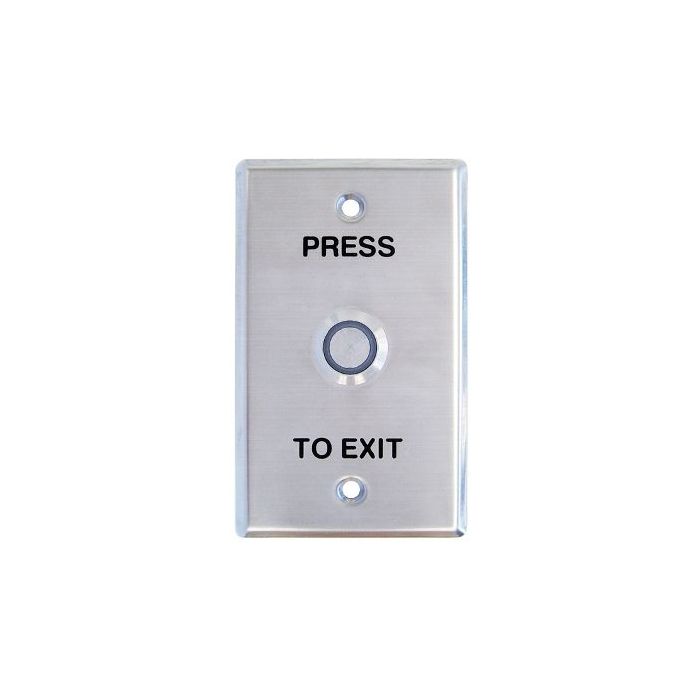

Sprint REX Illuminated SS Button Std Plate IP67 Rated
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Brochure | SPRL1911 Brochure | 156.6 KB | Download |
- L.E.D. Illumination with 12VDC
- Isolated Momentary Contacts NO / NC
- Includes 6 Wire Tail
- (W) 75 x (H) 115mm plate dimensions
Max current:2A (12 or 24VDC)
Min current:5mA
Resistance:<=50 m?
Insulation resistance:>100 M?
Contacts:1 x NO and 1 x NC (isolated)
Electric life:50,000 cycles
Mechanical life:1m cycles
IP rating:65
Terminals:Flying leads
231
Min current:5mA
Resistance:<=50 m?
Insulation resistance:>100 M?
Contacts:1 x NO and 1 x NC (isolated)
Electric life:50,000 cycles
Mechanical life:1m cycles
IP rating:65
Terminals:Flying leads
231
