AYCQ60
SKU
AYCQ60

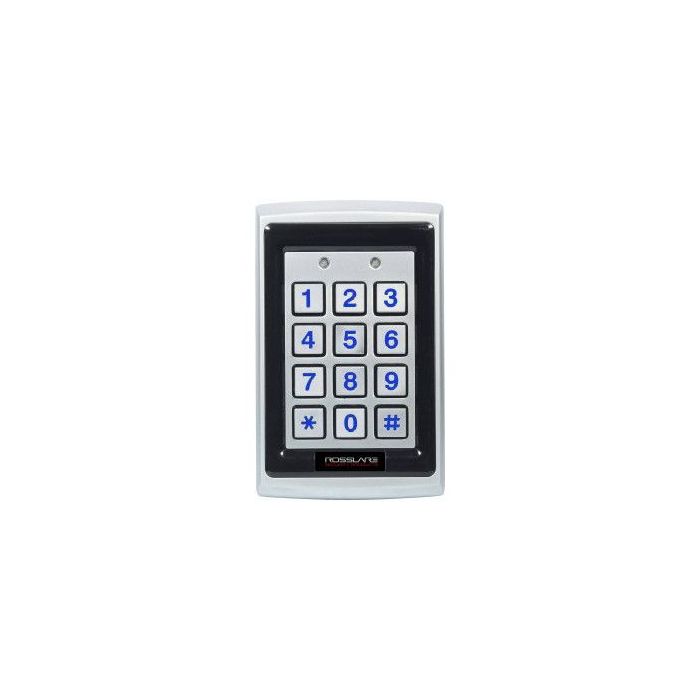

Rosslare Backlit Wiegand Keypad & Prox
- Operating Voltage Range 5–16 VDC
- Standby Input Current 100 mA
- Maximum Input Current 140 mA
- Tamper Output Open collector, active low, max. sink current 32 mA
- LED Control Input Dry Contact N.O.
- LED Indicators Two tri-colored LEDs
- Compatible Cards 125 kHz and/or dual technology ISO cards, clamshell and tags
- 120 x 76 x 22 mm
- 5 Year warranty
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Brochure | GOProx Family Brochure | 785.5 KB | Download | ||
Brochure | AYCQ Series manual | 1.2 MB |
- .
goPROX AYC-Q60 is a convertible PIN/Proximity Reader with Genuine HID Technology. goPROX AYC series automatically determines whether to function as a reader or as a secured standalone controller. If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to a Rosslare secured intelligent power supply such as the PS-A25T, PS-C25T, or PS-C25TU, it functions as a 500-user secured standalone controller.
MAIN FEATURES
Advanced, secure, multi-application functionality for intelligent installations Smooth, attractive design, with all-weather indoor and outdoor operation
2 tri-colored LEDs and an integral sounder for programming and operation User-friendly menu based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology formats, Wiegand 26 bits, Clock & Data)
Automatically recognizes Rosslares PS-x5 intelligent power supply family converting it into a 500-user standalone controller with secure relays
3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)1222
MAIN FEATURES
Advanced, secure, multi-application functionality for intelligent installations Smooth, attractive design, with all-weather indoor and outdoor operation
2 tri-colored LEDs and an integral sounder for programming and operation User-friendly menu based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology formats, Wiegand 26 bits, Clock & Data)
Automatically recognizes Rosslares PS-x5 intelligent power supply family converting it into a 500-user standalone controller with secure relays
3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)1222
