CC615PB

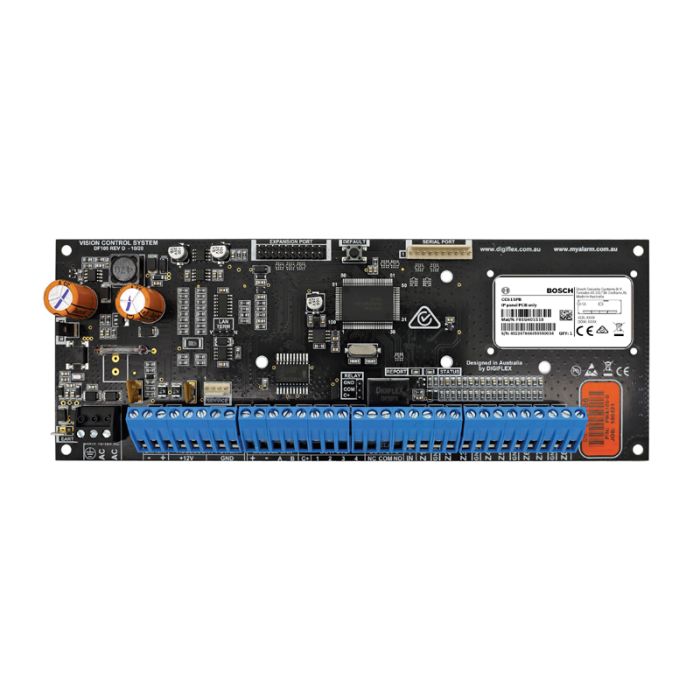

Bosch Solution 6000 Control Panel PCB Only- IP Only

• 16 onboard zones (expandable to 144 wired or wireless), partitionable to 8 areas with 990 PIN, token, keyfob and Fingerprint users
• ]Integrated access control for up to 16 doors
• MiFare Smart Card keypads, weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
• 5 onboard outputs (expandable to 37)
• IP Reporting via CSV-IP, Connetix, SIA, MyAlarm

The Solution 6000-IP Access and Intrusion alarm control panel offers an extensive feature list including integrated proximity, numerous wire free options, high speed windows programming software and the simplest user/installer interface on the market today.

Graphic User Interface

The Graphic User Interface incorporates a text driven menu. Color-coded, illuminated keys allow for easy identification and operation in all ambient light conditions and provide a positive feel to the user. Red and green indicators provide easy identification of Armed and Disarmed modes and the built-in sounder provides audible feedback via polyphonic like signaling tones during system operation. The sounder emits a siren sound during alarm condition providing early warning and the volume level is individually programmable for each key pad connected to the system. An enhanced version of the Graphic Key Pad incorporates a built-in proximity reader allowing users to simply present their token to the key pad to arm/ disarm and/or unlock a door. Children and the elderly will find this feature extremely easy to use, as no PIN codes are required for operation.

16 On-board Zones (expandable to 144 wired or wireless)

The Solution 6000-IP can be expanded up to 144 wired or wireless zones using zone expanders and/or serial radio receivers. Zone programming determines the panel’s response to open/short and tamper conditions on the zone loop. Zones can be programmed individually to monitor all types of security alarms, fire alarms and supervision devices. The panel supports multi-vendor wireless devices allowing you to select the most appropriate products for each installation.

Sensor Watch

Sensor Watch monitors each zone’s activity while its corresponding area is disarmed. If the zone fails to operate at least once during the sensor watch time period, a system trouble will be initiated.

Chime Mode

Chime mode allows monitoring a zone or group of zones by sounding the keypad buzzer or activating a programmable output. This feature is ideal to monitor business entry doors for customer entry during business hours.

Separate Tamper

Inputs Both the Solution 6000-IP Control Panel and most panel modules feature a separate tamper input making remote locating devices in a secure enclosure easy.

Walk test

Enables a user to test all zones within an area at the same time. When the walk test feature is activated, the code pad will display a list of areas available to walk test. Once the area to test is selected, all zones within the area will be displayed. The user then walks the area and zones successfully tested will be removed from display leaving only those that failed to be activated on the code pad screen.
