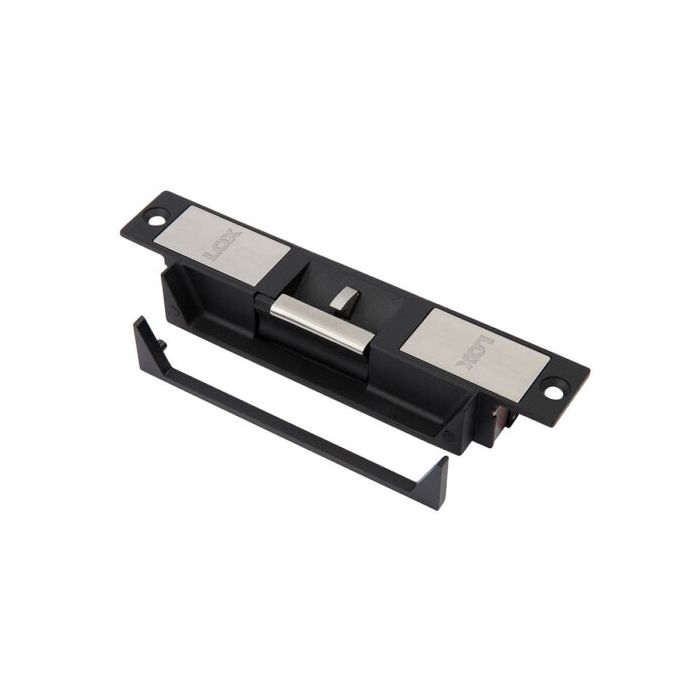

ES20M

LOX Flush 12/24vdc Strike - with Australian fire certificate

The LOX ES20 Series high security Electric Door Strikes are one of the most successful commercial Electric Strike products in Australia. It is manufactured from stainless steel, accepts D.C. Voltages from 10 to 30 VDC and is site interchangeable from Fail-Secure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver.

The ES20 Series Strikes have a 10mm strike lip as standard. This prevents potential personal injury and damage to clothing as compared to Electric Strikes with a 15mm strike lip.

All ES20 Series Strikes are pre-drilled to take extension lips in various sizes. The ES20M Electric Strike is one of the strongest Electric Strikes in its category

ES20M
HOLDING STRENGTH Up to 1000kg,
Tested to 1.5 million cycles
VOLTAGE/CURRENT Multi Voltage 10—30VDC, 250mA at 12VDC, 125mA at 24VDC
APPROVALS up to 4 hour fire rated to A.S Standards, CE & C-TICK
LSS MONITORING Status Sensor of the internal locking mechanism
DSS MONITORING Door Latch Sensor, Door latch engaged within strike keeper
ATS MONITORING Door strike removed or repositioned Sensor
