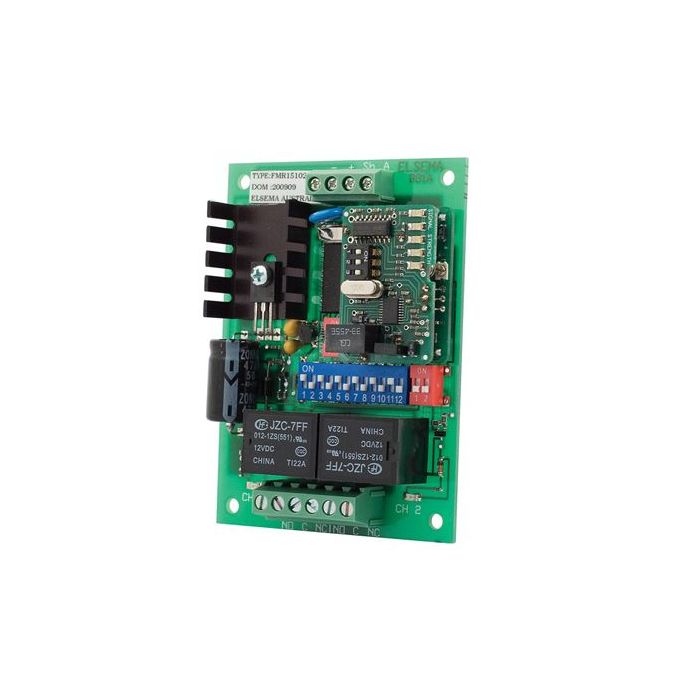

Elsema 151MHZ 2ch Receiver
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Manual | Elsema FMR15102 Manual | 538.7 KB | Download |
- Two channel receiver with relay outputs
- Supply voltage can be AC or DC
- Built-in noise or signal strength indicator
- User can select 8 different frequencies
Easy code setup with dip switch settings
Optional QM100 bracket available for easy mounting to cases or walls.
C1015 or C1020 case is also available
Applications.
Pump Control
Long distance panic button
On/Off applications in agricultural devices
Security alarm
Basic Telemetry eg. Water level indication
Description
This receiver gives you two relay outputs with a contact rating of 5 amps at 240VAC. The relay mode can be set
to momentary, latching or security latching.
The user can select 8 different narrow band frequencies and program unlimited number of transmitters to the
receiver. With a narrow band FM 151MHz signal from the transmitter a line of sight operating range of 5000
metres is possible. The receiver uses a crystal oscillator circuit that ensures high frequency stability allowing
optimal performance in the receiving range.
Output Modes
Relay output on the receiver can function in either momentary or latching mode. By default the mode is set to
momentary. Modes selectable from the 2-way dipswitch. Dipswitch 1 corresponds to relay channel 1 and
dipswitch 2 corresponds to relay channel 2.
Factory Default = Momentary
Momentary - Output is active for as long as the transmitter button is pressed.
This is a standard mode on most automatic gates or garage door openers.
Latching - Output remains active until next press of the transmitter button.
Similar to switching "on" and "off" a light.
Security
Latching
- Output remains active until power to the receiver is removed. Similar to security alarms
and fire alarms. To activate the security latching mode, a link needs to be soldered into the
hole marked as latching.1685
