FOTO35SDE
SKU
FOTO35SDE
Prastel 35m Flush Mount Outdoor Beam

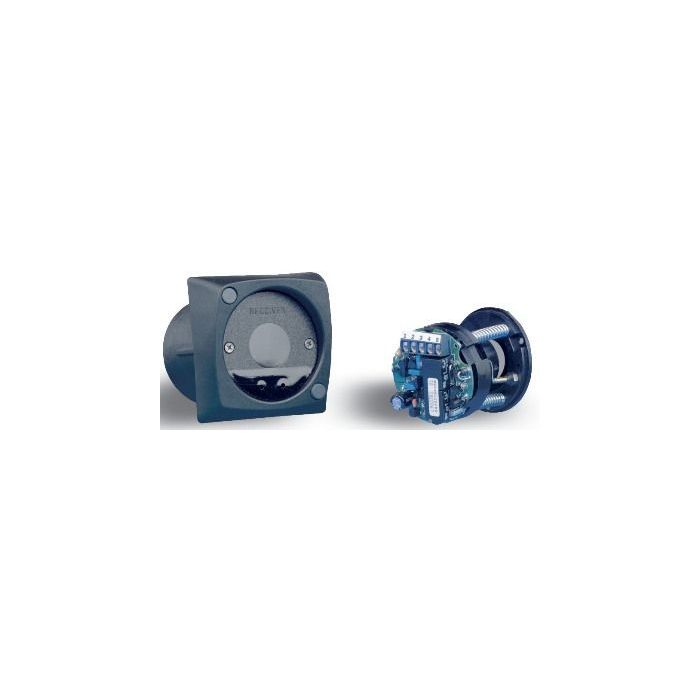

The photocell FOTO35SDE has been designed for use in automation applications. It’s flush mounted, TX and RX with adjustable screws make it an ideal choice for gates or doors.
Features
- Nominal range 35m
- AUTOTEST function
- Shielded electronics on the receiver
- Alignment test point
Technical
- Power Supply: 12 / 24v AC/DC
- Consumption: 55 mA
- Box: Nylon fibre glass
- Relay contact capacity: 0,5 A @ 24v AC/DC
- Trigger time: < 20ms
- Operating frequency: 850 Hz +/- 10%
- Modulation frequency: 1000 Hz
- Infra-red wavelength: 850 nm
- Protection rating: IP44
- Operating temperature: -20°C to +55°C
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Brochure | FOTO35SDE Brochure | 236.9 KB | Download |
- Autotest Function
- Shielded Electronics on the Receiver
- 12 - 24VAC/DC - IP44
- 72mm(h) x 72mm(w) x 77mm(d)
The FOTO35SDE Photobeam has been designed and developed for a use on automatic gates, doors, shutters etc.
The transmitter and receiver are fitted with adjustble screws for a flush mounting.
197
The transmitter and receiver are fitted with adjustble screws for a flush mounting.
