ICMCPE6S-2PACK

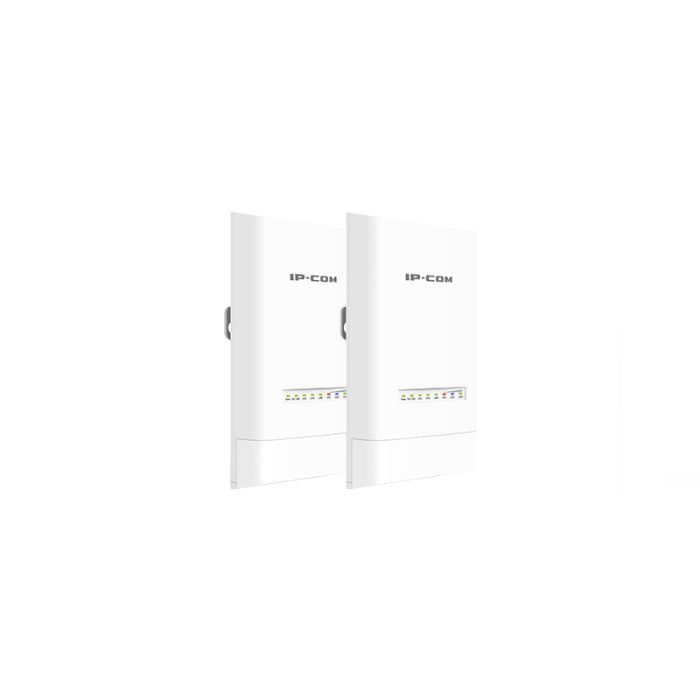

CPE6S 5GHz 12dBi ipMAX ac Outdoor CPE 2 Pack

• Pre-configured & plug and play（kit）
• 5GHz 11AC 867Mbps
• 12dbi directional antenna
• Four fast ethernet Port
• IP65 waterproof enclosure
• 6000V Lightning Protection
• 12V 1A DC/12V 1A Passive PoE supported

CPE6S 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.

CPE6S adopts of internal power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.

CPE6S support 12V 1A Passive PoE and 12V 1A DC power supply optional. It helps the engineer to deployment the device flexiblely.

ipMAX is IP-COM TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless P2MP outdoor application scenarios. In outdoor environment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become "hidden nodes" and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With ipMAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.

For single pack，iLink, IP-COM proprietary auto-bridge technology, makes the CPE or basestation in factory default settings connect to each other automaticaly after the device is powered on. For the kit pack, the two CPESs inside are pre-configured at the factory, so plug and play is supported without manual pairing. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.

CPE6S comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Controller.

Equipped with IP65 waterproof enclouse and high quality hardware design, CPE6S can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
