AIPHONE - IXG SERIES IP MULTI-TENANT VIDEO INTERCOM
The new IP Apartment Intercom system from Aiphone is a pure IP based soluti on which can be connected directly onto a network infrastructure without the need for additional system components such as servers and dedicated distributors.
Installation time and cost is further minimised by the availability of entrance and room stations which feature PoE for easy wiring.
The Aiphone IP Apartment Intercom system supports up to 9,999 units deployed across a maximum of 99 interconnected buildings.
Regardless of the size of the initial project, with no server required and no licence fees, it could not be simpler to add additional stations when new accommodation units or towers are added.
For mixed purpose buildings and campuses requiring a higher level of security, the IP Apartment Intercom system can be integrated with Aiphone’s full IP perimeter and call forwarding system to provide emergency broadcasts and site control.
KEY FEATURES

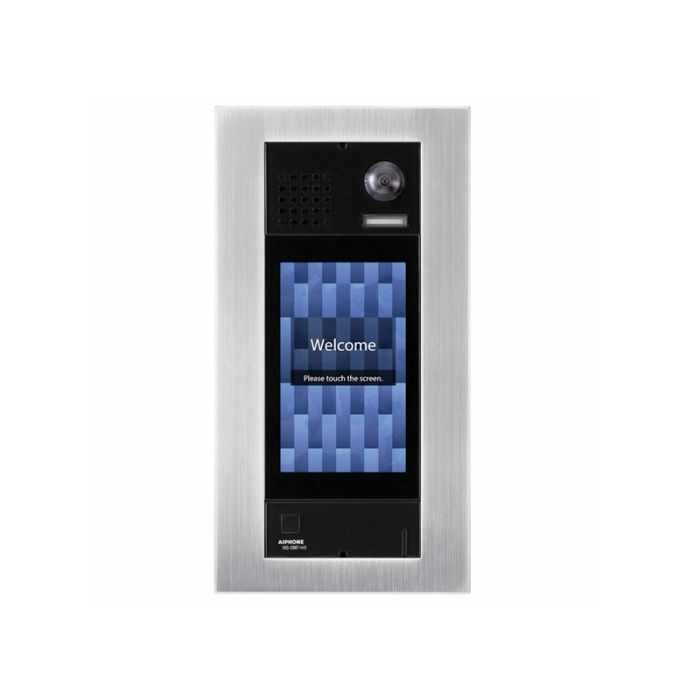

- Stylish and practical 7” touchscreen entrance station with recording
- 7” touchscreen master station
- Smartphone Application provides remote access and control from anywhere in the World via an Android / iOS device
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Brochure | IXG Brochure | 5.7 MB | Download | ||
Manual | ixg-intercom-app-operation-manual | 8.9 MB | Download |
- 7-inch LCD touchscreen
- Customizable welcome screen.
- IP65 rated, weather resistant
- Camera vertical adjustment +15º, 0º, or -8º (manu)
7 LCD Touchscreen
Customisable Welcome screen
Video and Audio can be continuously recorded in the internal micro SD card
2 Way video communication with Guard stations
Supports up to 9,999 units deployed across 99 interconnected buildings
ONVIF Profile S Compliant
802.3af PoE Class 0
720p fixed colour video camera
White LED for low light illumination
Capture and store the audio and video of active conversations on a microSD card (not provided by Aiphone)
Power SourcePoE (802.3af)
Power Draw4.32 Watts
Camera1/3 CMOS 720p
Min. illumination5 lux
Audio CodecG.711 (-law, A law)
Video CodecH.264/MP
Network Protocols
IPv4, IPv6, TCP, UDP, SIP RFC3261, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS, TLS
RatingIP65, IK08
Operating Temp-10 +60C (+14 +140F)
Dimensions13-11/16? H x 7-3/16? W x 1-1/2? D
MountingFlush wall mount with included bracket935
Customisable Welcome screen
Video and Audio can be continuously recorded in the internal micro SD card
2 Way video communication with Guard stations
Supports up to 9,999 units deployed across 99 interconnected buildings
ONVIF Profile S Compliant
802.3af PoE Class 0
720p fixed colour video camera
White LED for low light illumination
Capture and store the audio and video of active conversations on a microSD card (not provided by Aiphone)
Power SourcePoE (802.3af)
Power Draw4.32 Watts
Camera1/3 CMOS 720p
Min. illumination5 lux
Audio CodecG.711 (-law, A law)
Video CodecH.264/MP
Network Protocols
IPv4, IPv6, TCP, UDP, SIP RFC3261, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS, TLS
RatingIP65, IK08
Operating Temp-10 +60C (+14 +140F)
Dimensions13-11/16? H x 7-3/16? W x 1-1/2? D
MountingFlush wall mount with included bracket935
