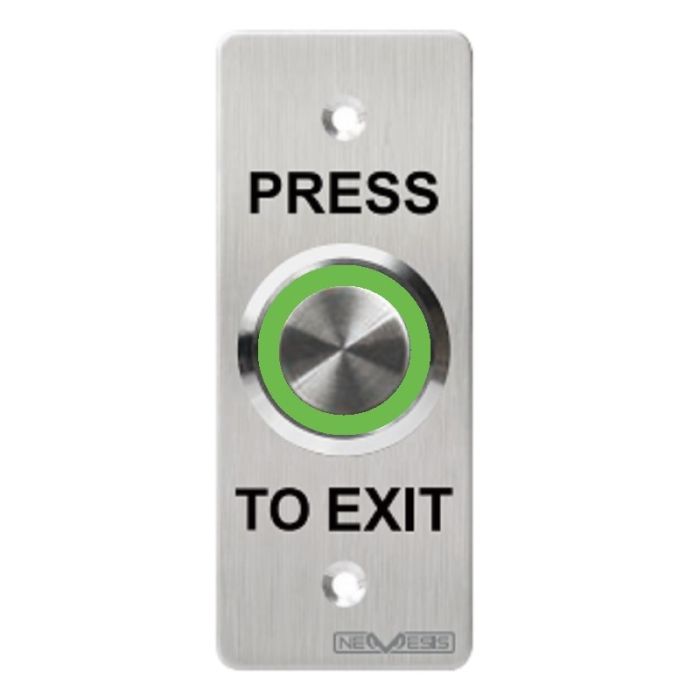

NEM-EXIT-ILLUM-SLIM

Slim Illuminated Stainless Steel Exit Button

• Panel: Stainless steel, 304 grade, 1.7mm thickness
• Button: Stainless steel, illuminated
• Dimensions: 75H x 30W x 40D (mm)
• Output Contact: 1x NO & 1x NC
• Mechanical Life: 500,000 Operations
• Ingress Rating: IP66
• LED Indicator: Green LED (standby), Green LED (active)
• Power: 12-24V DC (for led only)
• Operating Temperature: -20°C to +55°C
• Operating Humidity: 0-95% (relative humidity)
• Weight: 100 g
• Fixing Method: 2 x 3 mm stainless steel screws (included)
