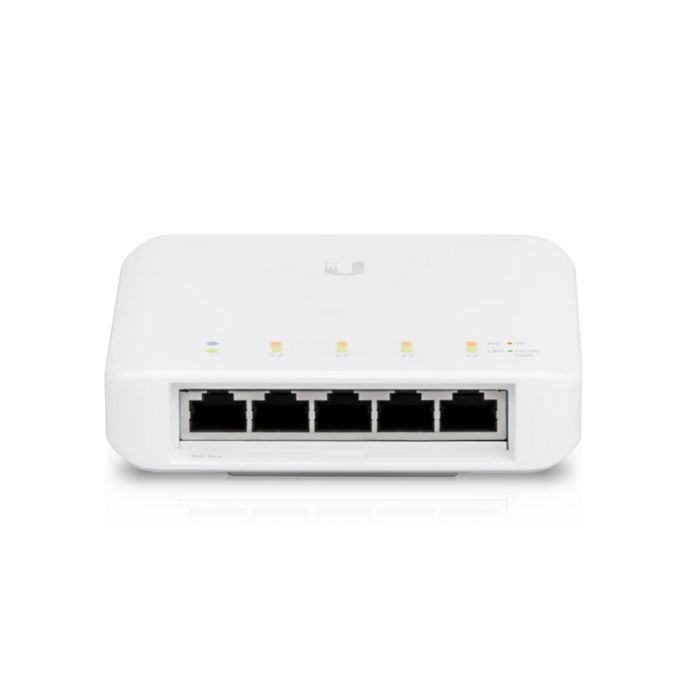

NHU-USW-FLEX
Flex 60W 802.3bt to 4-Port 802.3af PoE Outdoor Switch
The USW-Flex from Ubiquiti Networks is a configurable L2 Gigabit switch with auto-sensing 802.3af power over Ethernet. It offers (5) RJ45 Gigabit Ethernet ports with (1) 802.3bt PoE input and (4) 802.3af PoE output links to your devices. It offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The USW-Flex can be installed horizontally or vertically and is designed for indoor and outdoor use, making it ideal for desktop, wall, and pole-mount installations. With its weatherproof housing and versatile mounting options, the USW-Flex provides the flexibility and durability in environments with extreme temperature variations.
USW-Flex Total PoE Budget
- Powered by AF mode PSE: 8W
- Powered by AT mode PSE: 20W
- Powered by BT mode PSE: 46W
- Powered by PoE Adapter (enabled in controller): 46W
- no support for passive POE output (12-24VDC)
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Specsheet | NHU-USW-FLEX Data sheet | 3 MB | Download |
