PP8FR
SKU
PP8FR

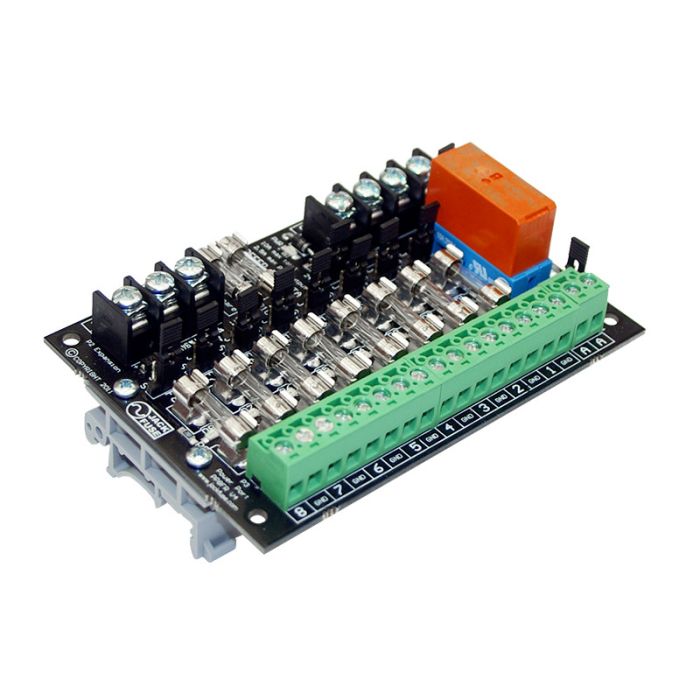

Jack Fuse Power Port 8 Way with Fire Trip
The Power Port 8FR provides essential, cost effective, power distribution to electronic access control and security devices.
Our flagship module is used in thousands of buildings nationwide. The PP8FR reduces system installation time, simplifies wiring and helps ensure safety compliance.
Applications
- Fused power distribution for all security devices
- Automated emergency fire trip door override
- Fire trip alarm monitoring
Features
- Eight individually fused outputs with status LED
- Selectable outputs – fire power or standard power
- On board spare fuse holders
- 12 or 24VDC
- Fire alarm monitoring output
- Dry contact or voltage fire trip input
- Unfused auxiliary output for expansion
- DIN rail mount
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Manual | PP8FR Installation Manual (OLD V4) | 148 KB | Download | |
|
|
Brochure | PP8FR Data Sheet | 106.9 KB | Download | |
|
|
Manual | PP8FR Manual (NEW V6) | 2 MB | Download |
- Eight individually fused outputs each with status
- Field replaceable fire trip relay
- Max standard power current -8 Amp
- Max constant current per output 2.5 Amp
Fused power distribution module for access control with integral fire trip relay.
The Power Port 8FR is an expandable module designed to provide protected power distribution for building electronic access control and security devices.
In addition the PP8FR also interfaces electronic access control devices to a buildings fire detection and emergency evacuation system.
Applications
Power distribution for electronic access control and security devices Fused over current protection Automated fire alarm emergency release of electric door locks Fire trip alarm monitoring
Features
Eight individually fused outputs each with status LED Field replaceable fire trip relay Individually field selectable power outputs fire power or standard power. On board spare fuse holders Wide range of operation voltages Unlimited local and remote expansion options Fire relay status output with on board customisable EOL resistors, or N/C output for failsafe fire trip connection to extra modules or other equipment Drive fire relay directly from FIP voltage or onboard voltage via N/C FIP contact Unfused auxiliary output for expansion (see module PP4F) Drastically reduced material list, cost and install time compared to traditional methods 1273
The Power Port 8FR is an expandable module designed to provide protected power distribution for building electronic access control and security devices.
In addition the PP8FR also interfaces electronic access control devices to a buildings fire detection and emergency evacuation system.
Applications
Power distribution for electronic access control and security devices Fused over current protection Automated fire alarm emergency release of electric door locks Fire trip alarm monitoring
Features
Eight individually fused outputs each with status LED Field replaceable fire trip relay Individually field selectable power outputs fire power or standard power. On board spare fuse holders Wide range of operation voltages Unlimited local and remote expansion options Fire relay status output with on board customisable EOL resistors, or N/C output for failsafe fire trip connection to extra modules or other equipment Drive fire relay directly from FIP voltage or onboard voltage via N/C FIP contact Unfused auxiliary output for expansion (see module PP4F) Drastically reduced material list, cost and install time compared to traditional methods 1273
