SB2211

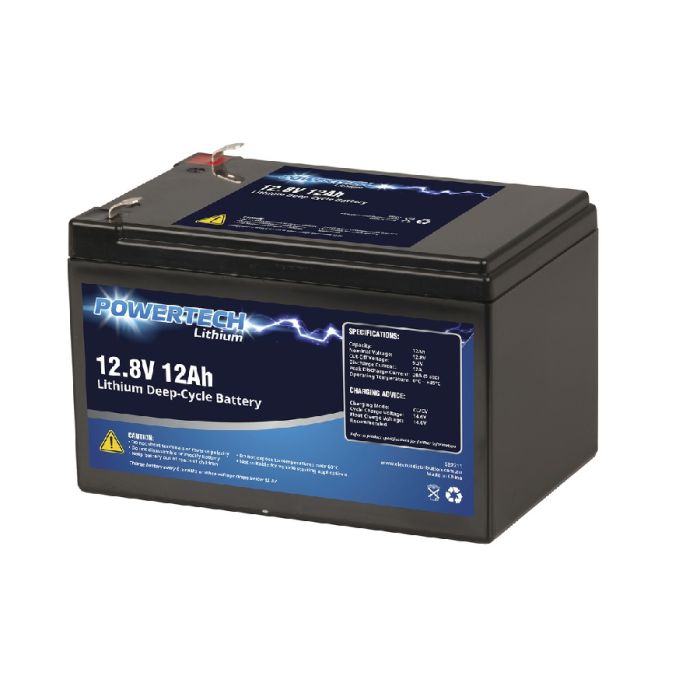

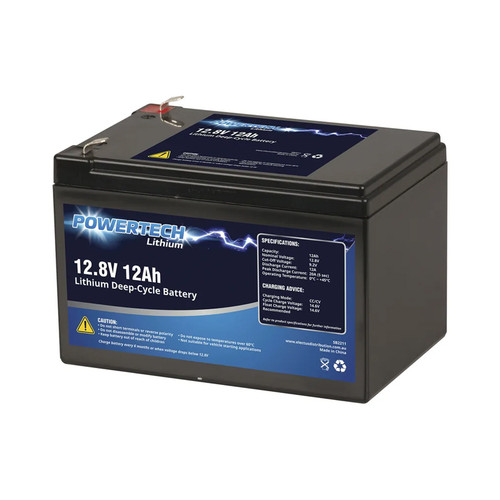

12.8V 12Ah Lithium Deep Cycle Battery

The next generation of power storage is here! These LiFePO4 batteries may look fairly similar to lead acid batteries, but internally they’re a totally different, next generation concept. They’re actually made up of regular 32650 LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. This provides you with a higher degree of protection than a traditional lead acid battery which is unprotected, and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

This 12Ah model can provide continuous current up to 12A. Absolutely perfect for high capacity portable power, and replacement of similar capacity lead acid / AGM battery.

Features:
- Much lighter than Lead Acid and AGM Batteries
- Robust LiFePO4 Cells
- Excellent life span

Specifications:
Capacity: 12Ah
Service Life: 10yrs+
Cycle Life: 1500+ cycles (> 80% capacity retention)
Cut-Off Voltage: 10V approx.
Charge Type: Constant Current / Constant Voltage
Discharge Current: 12A
Max Continuous Current: ≤20A (≤5 sec)
Internal Cells: 32650 LiFePO4
Maximum Internal Resistance:  85M?
Output Terminals: M5 Bolt Down
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%
