UPROXEXTENDER
SKU
UPROXEXTENDER

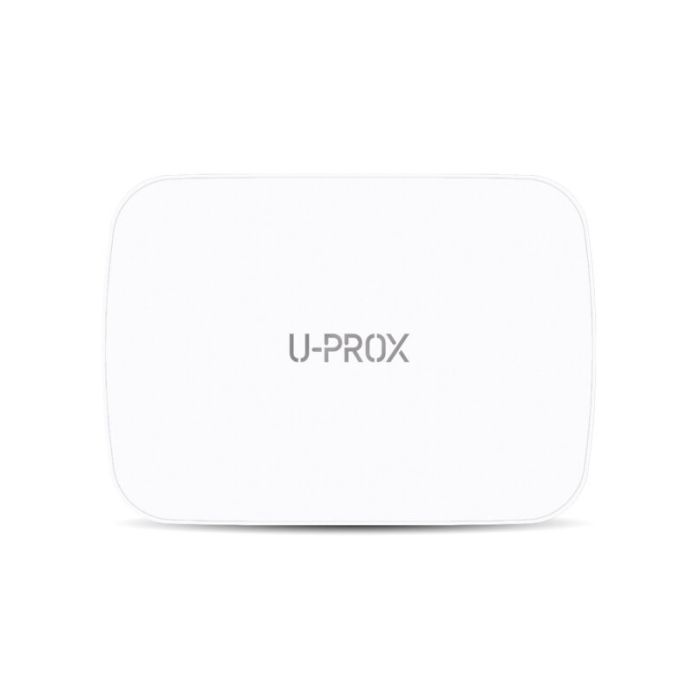

U-Prox Extender - is a range extender. The device significantly increases the radio communication distance between the U-Prox control panel and other wireless devices. Supports connection up to 200 devices (sensors, keypads, key fobs, etc.) via radio channel at a distance of up to 4800 m. Distance to U-Prox - up to 4800m line of sight.
- U-Prox Extender;
- One 18650 battery (pre-installed);
- Power supply;
- Quick start guide
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
- Automatic relaying of devices without additional configuration
- Advanced algorithms for selecting the optimal route for delivering notifications from wireless devices
- Secure two-way radio communication with wireless devices
- Two transceivers 868.0 … 868.6 MHz, range – up to 4800 m
- Detection of sabotage of the radio channel
- Battery 2500 mAh – up to 36 hours without main power
- 12V power supply included
- Repeaters in the system: up to 8
- Relay levels: 1
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Manual | UPROXEXTENDER Manual | 961.5 KB | Download |
- Dimensions: 167 x 120 x 25.4 mm
- Operating temperature range: 0 ° C to + 45 ° C
