UPROXRELAYDC
SKU
UPROXRELAYDC

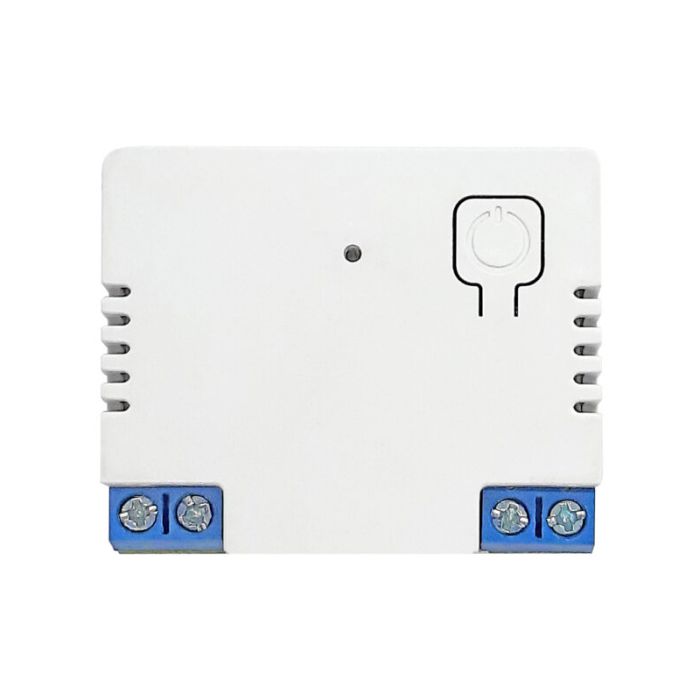

U-Prox Relay DC - is a wireless low-current single pole relay which is designed to control appliances remotely.
Relay requires power 10.8 - 13.2VDC to operate.
- U-Prox Relay DC;
- 2. Quick start guide
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
- Output COM NO, 250VAC/10A or 30VDC/10A DC max.
- Operations > 100 000
- Response delay 5 sec
- Modes impulse, trigger (bistable)
- Impulse duration adjustable: 0.1 … 250 seconds
- Secure two way communication, sabotage detection, key – 256 bits
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Manual | UPROXRELAYDC Manual | 806.6 KB | Download |
- Dimensions & weight: 44 x 36 x 18 mm & 55 grams
- Operating temperature range -10°C to +55°C
