ACQ42SB
SKU
ACQ42SB

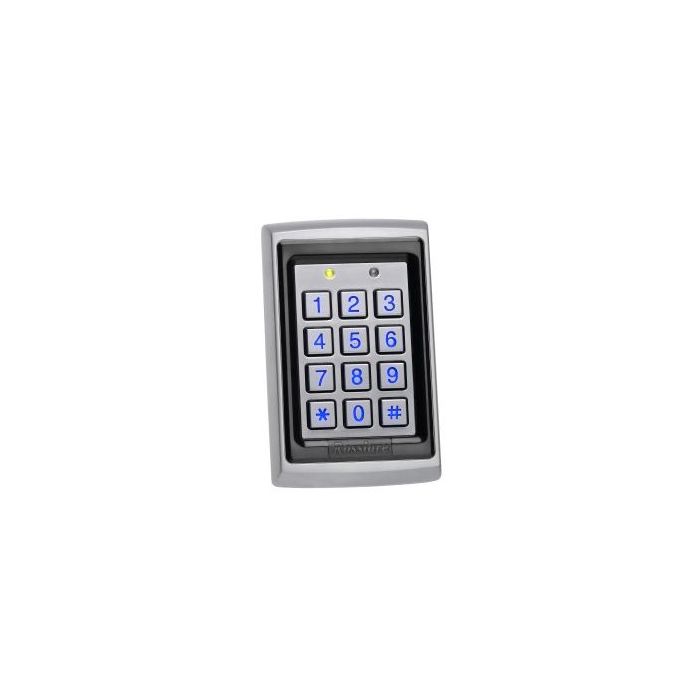

Rosslare Standalone 4x3 Backlit Keypad and EM Reader
The AC-Q42SB anti-vandal controller has a unique combination of large backlit metal keys and a built-in heater. It offers a higher level of user accessibility in low light areas.
AC-Q42SB has an attractive slim profile, free from sharp edges, ideal for installations where style, strength and functionality are highly important. This feature-rich unit offers all weather operation, with flexible programming capabilities including a unique “code search” for simple user management. Non-volatile memory protects the storage of user database, modes and parameters.
- Built-in 125 kHz RFID EM format card reader
- 500 users can have PIN and / or RFID credentials to grant access
- Smooth attractive design, with anti-vandal construction
- Highly-visible blue backlit keypad
- 3 operational Security Levels can be selected with special PIN codes
- Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts
- 2 tri-colored LEDs and integral sounder for programming and operation
- Wide range of low voltage AC/DC power input
- Optical tamper detection output
- Automatic internal heater prevents key freeze at - 20˚C (4˚F)
- 10 programmable modes for auxiliary input and output (2 Amp Form C Relay.)
- Supports: Door Ajar, Forced, Shunt, Monitor, and Secure mode
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Manual | Rosslare ACQ42SB Cheat Sheet | 105.7 KB | Download | ||
Manual | Sprint Cheat Sheet | 105.7 KB |
- .
