ME0515M
SKU
ME0515M

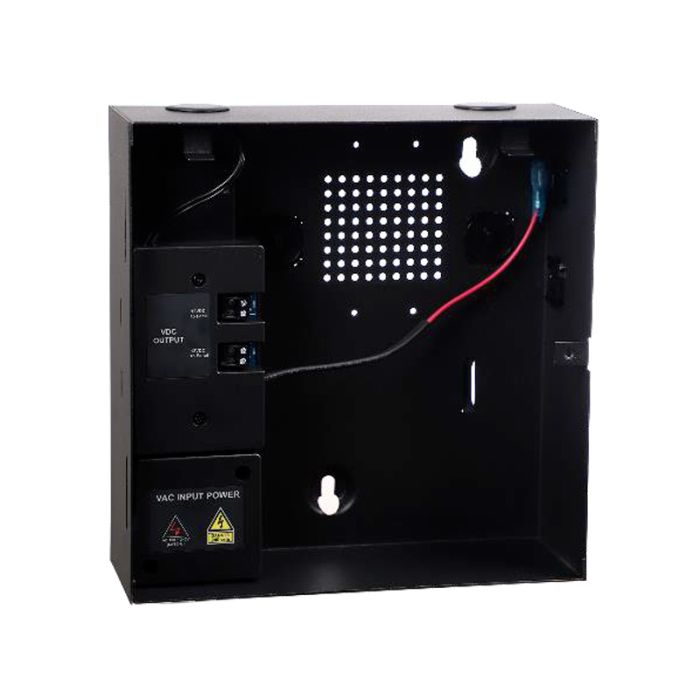

The ME-0515M is a multipurpose wall-mountable power management enclosure that contains a switchmode power supply and a PM-05 power management module. The switch mode power supply has a universal power input range of 100 – 240 VAC, 50/60 Hz, 1.5A AC input, and supplies a 15V DC, 4A output to the PM-05 power management module. The PM-05 has two independent power output channels each with an isolated PTC (self-resetting fuse) that can be connected to any device of your choice. Battery backup is available and upon AC power failure, the PM-05 module instantaneously (UPS) switches power to a standby 7AH sealed lead acid battery (not included). The battery charging is managed by the PM-05 with a low battery cut-off to prevent batteries from deep discharge.
- Global input voltage – 100 VAC to 240 VAC 50/60Hz auto select. Rosslare can provide versions with C13 power plugs for any country
- Delivers two isolated 12 VDC power @ 2 Amp output channels with PTC resettable fuse (4 A total)
- Wall mountable with external connection for AC power input, and internal charger connected to battery backup
- Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Specsheet | ME0515M Data sheet | 306 KB | Download |
