ACS43

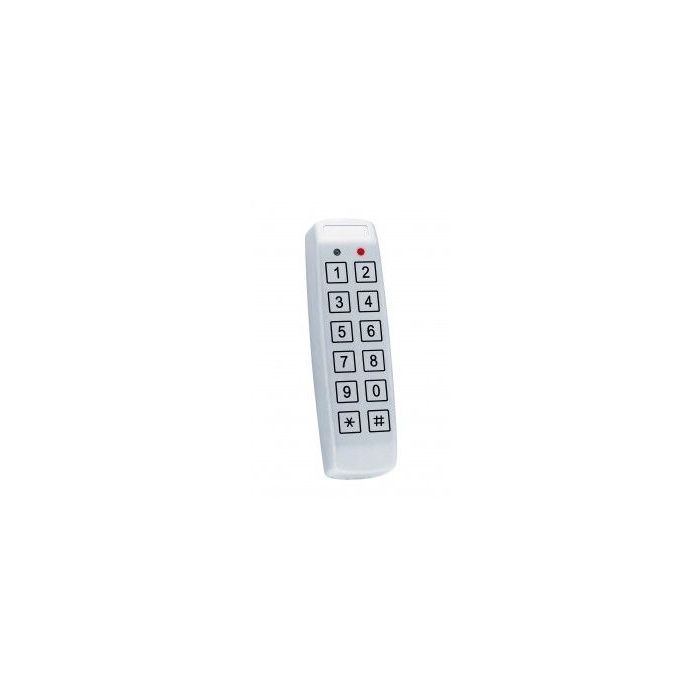

Rosslare Standalone 2x6 Piezo Keypad

The AC-S43 is a stylish, cost effective single door PIN access control unit. It is the ideal solution for outdoor residential, commercial, and industrial applications. The controller is standalone (no PC is required), and each user can be assigned one or two codes, effectively creating three different security levels. Housed in a sturdy metal vandal-resistant casing and completely epoxy potted, the AC-S43 is built for indoor or outdoor use in all weather conditions. This feature-rich unit offers flexible and easy programming capabilities including a unique “code search” for simple user management.

• 500 PIN users
• Smooth attractive design, with anti-vandal casing
• Highly-sensitive piezoelectric metal keys
• 3 operational security levels can be selected with special PIN codes
• Supports up to 8-digit PIN codes, with timed wrong code lockout after 3 wrong attempts
• 2 tri-colored LEDs and integral sounder for programming and operation
• Wide range of low voltage AC/DC power input PROFESSIONAL GRADE FEATURES
• 10 programmable modes for auxiliary input and output (3 A Form C Relay)
• 3 A Form C Lock Strike Relay for fail-safe and failsecure
• Two inputs: REX and Auxiliary
• Supports: Door Ajar, Forced, Shunt, Monitor, and Secure modes
• Meets IP68 for outdoor use
