AYCT65B

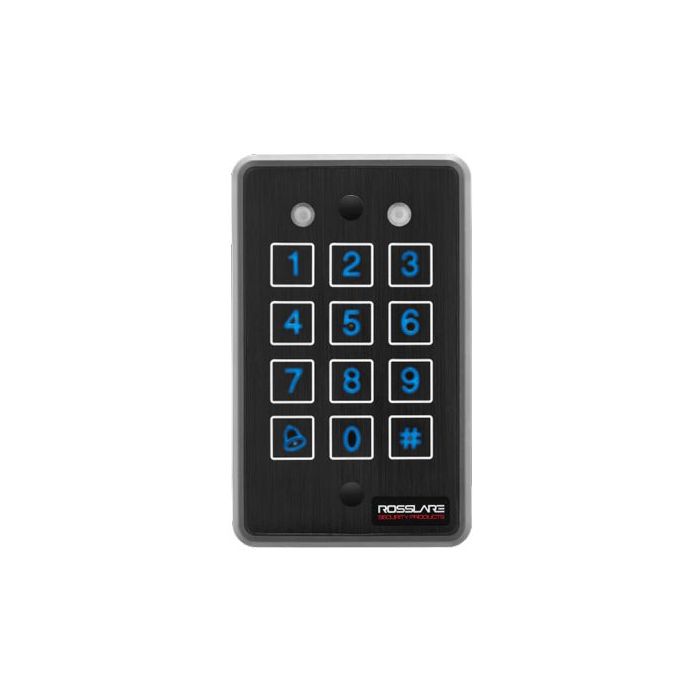

Rosslare Ultra Slim Prox & PIN 3x4

The AYC-T65 offers programmable PIN & Proximity transmission formats, LED control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged metallic housing and waterproof enclosure for maximum durability. The high sensitivity, illuminated piezoelectric keypad, with its auto-dimming options is clearly visible day or night, allowing easy and smooth operation making these units ideal for residential and commercial applications.

  • Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • Large, high-visibility unique illuminated piezoelectric keypad
  • Optical back tamper detection output
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User-friendly menu system based on keypad, LED, and sounder indicators
  • Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays
  • Available in two models: AYC T65B in black color and AYC-T65N in natural color
  • 8 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 3x4 Matrix
  • Supports Wiegand or Clock & Data transmission formats
  • 3 security levels (Controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
  • Comes with a mounting and drilling label
  • 60 cm (23.6 in.) shielded interface cable
Format Label Description Type Size Download
pdf Specsheet AYCT65 Data sheet pdf 263.7 KB Download
