AYCE60BLK
SKU
AYCE60BLK

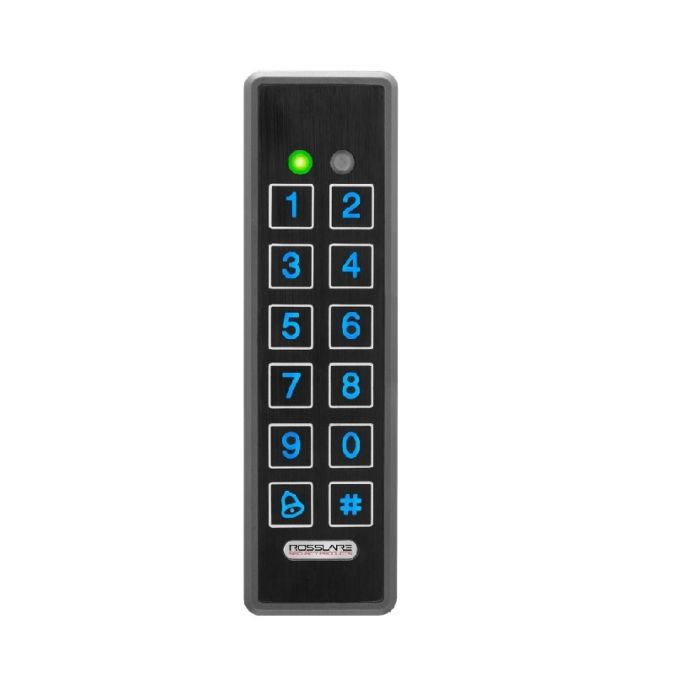

Rosslare 2x6 Wiegand Piezo Keypad/Prox --BLACK
PROX FORMAT HID & EM ONLY
As a reader, the units can read all HID Prox As a reader, the units can read all HID Prox Cards/Tags (125 kHz FSK) using Genuine HID Technology™ and outputs HID Prox card data in Wiegand according to the number of bits of data stored on the card. The units also read Rosslare PROX – EM Proximity Cards (125 kHz – EM) and can output EM card data as Wiegand 26-Bit, Clock & Data, and Wiegand + PIN. As a controller, the units accept up to 500 users, and allow entry via a personal identification number (PIN) and/or by presenting a proximity card. The PIN code length for the controller can vary. The PIN code length can be a set number of 4, 5, or 6 digits or it can be flexible from 4 to 8 digits.
- Advanced, secure, multi-application functionality for intelligent installations
- Smooth, attractive design, with all-weather indoor and outdoor operation
- 2 tri-colored LEDs and an integral sounder for programming and operation
- Unique backlit piezoelectric keys
- User-friendly menu based on keypad, LED, and sounder indicators
- Back and cover optical tamper detection and output
- Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology™ formats, Wiegand 26-Bit, Clock & Data)
- Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
- 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Specsheet | AYCE60BLK Datasheet | 785.5 KB | Download |
